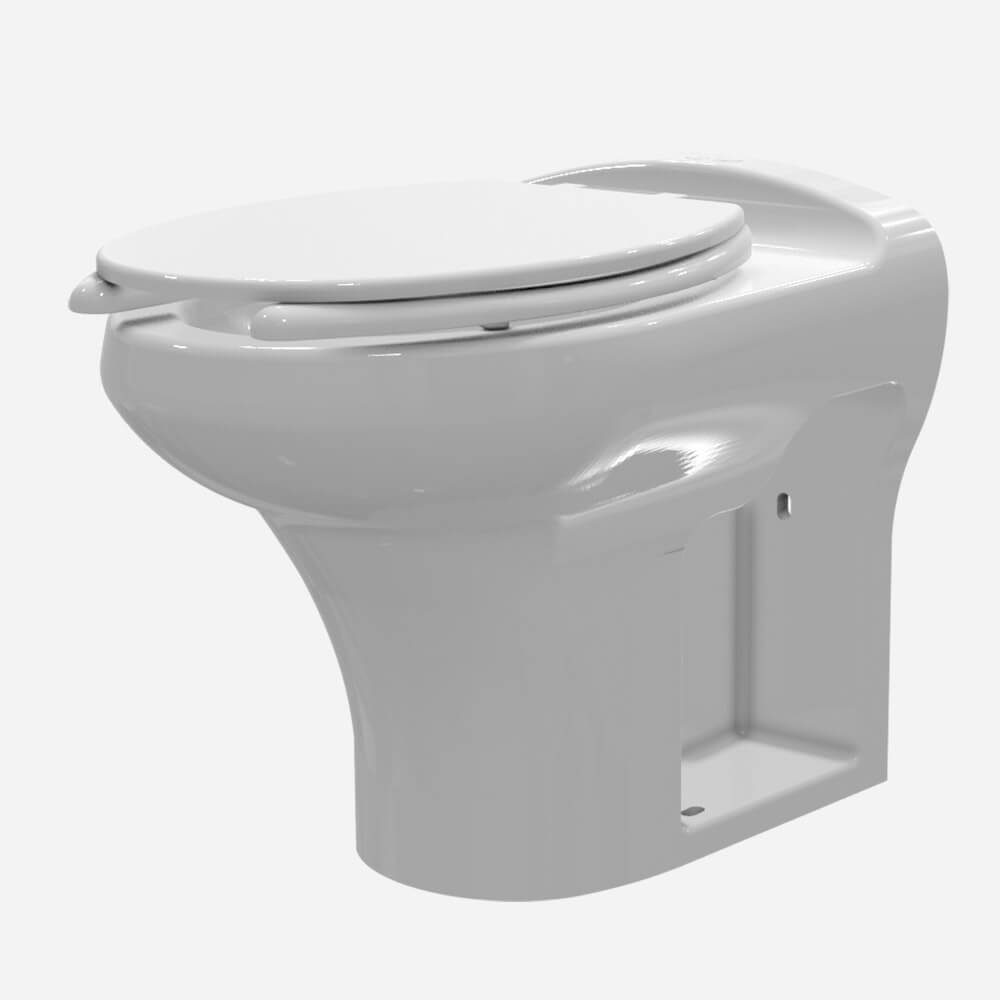

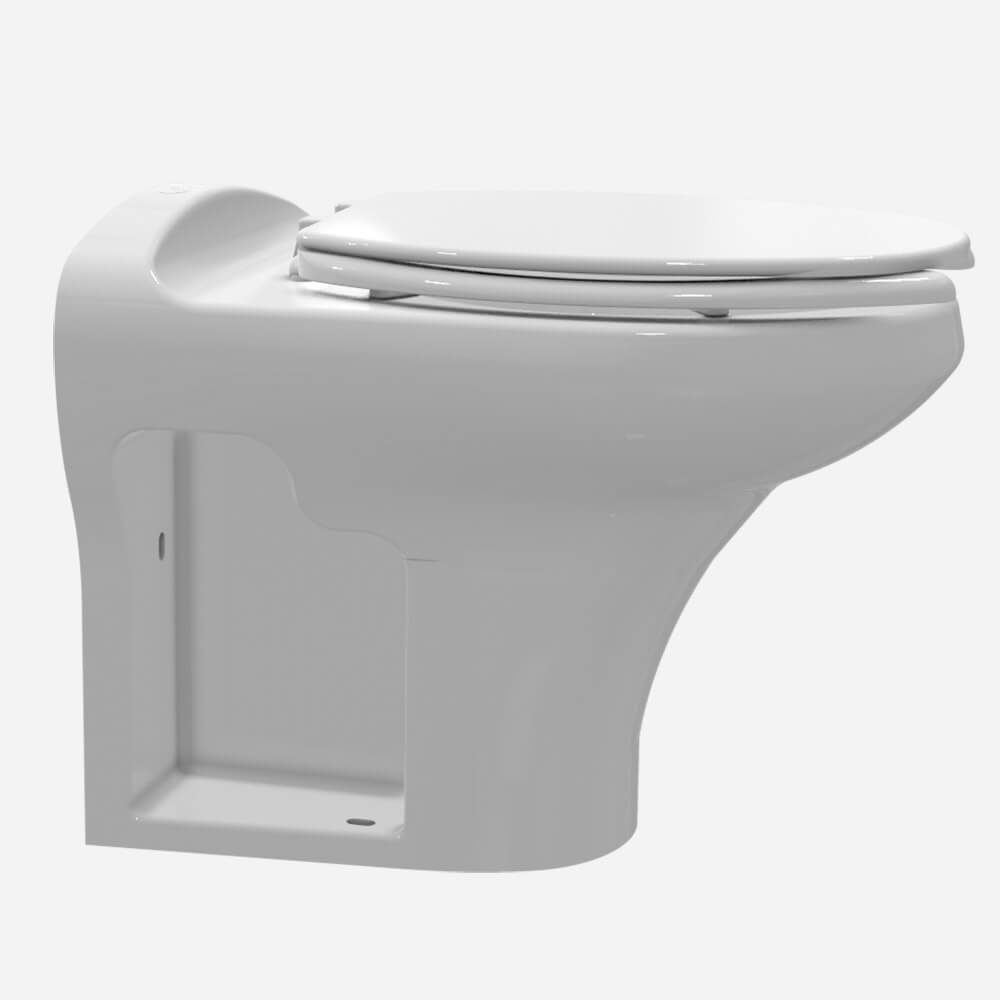

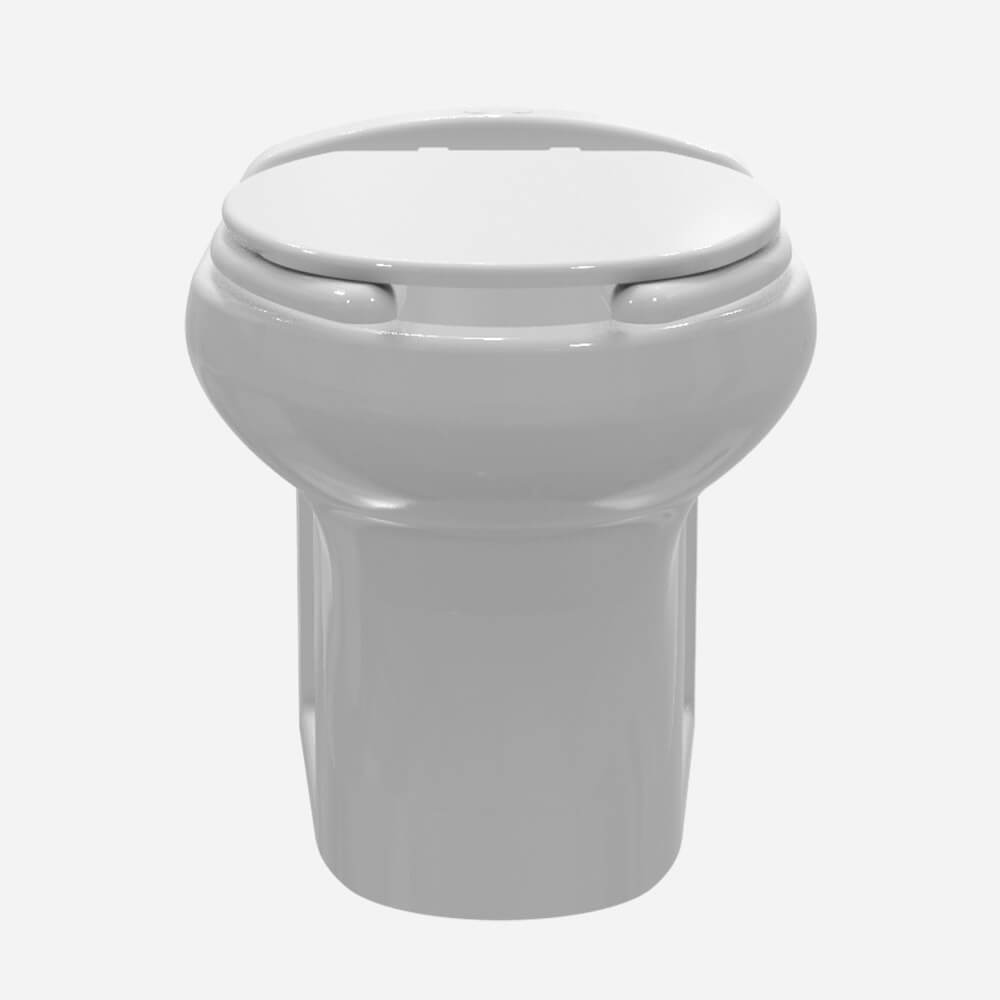

Vitreous China Vacuum Toilet, On-Floor, ADA

This ADA compliant vitreous china vacuum toilet with an elongated bowl is designed for use with an Acorn Vac Vacuum Waste System. This toilet is designed to mounted on the floor against the wall. When used in a vacuum plumbing system, vacuum toilets produce no flush overspray, leading to less spread of germs.

ADA compliance is subject to proper installation, including but not limited to devices such as grab bars, and the interpretations of the local code authority. Please check local ADA requirements.

BENEFITS OF VACUUM PLUMBING

Vacuum Toilets use as little as 0.26 gallons (1 liter) per flush saving up to 68% over standard gravity toilets.

Vacuum plumbing draws air in and flushing produces no overspray, which leads to a healthier and safer environment.

Vacuum toilets are designed to provide an effective and environmentally friendly flush requiring less than 0.35 gallon (1.32 liters) per flush

The differential between atmospheric and vacuum pressure moves waste through the system and assists with reducing costs associated with clearing main waste line blockages.

VACUUM TOILETS

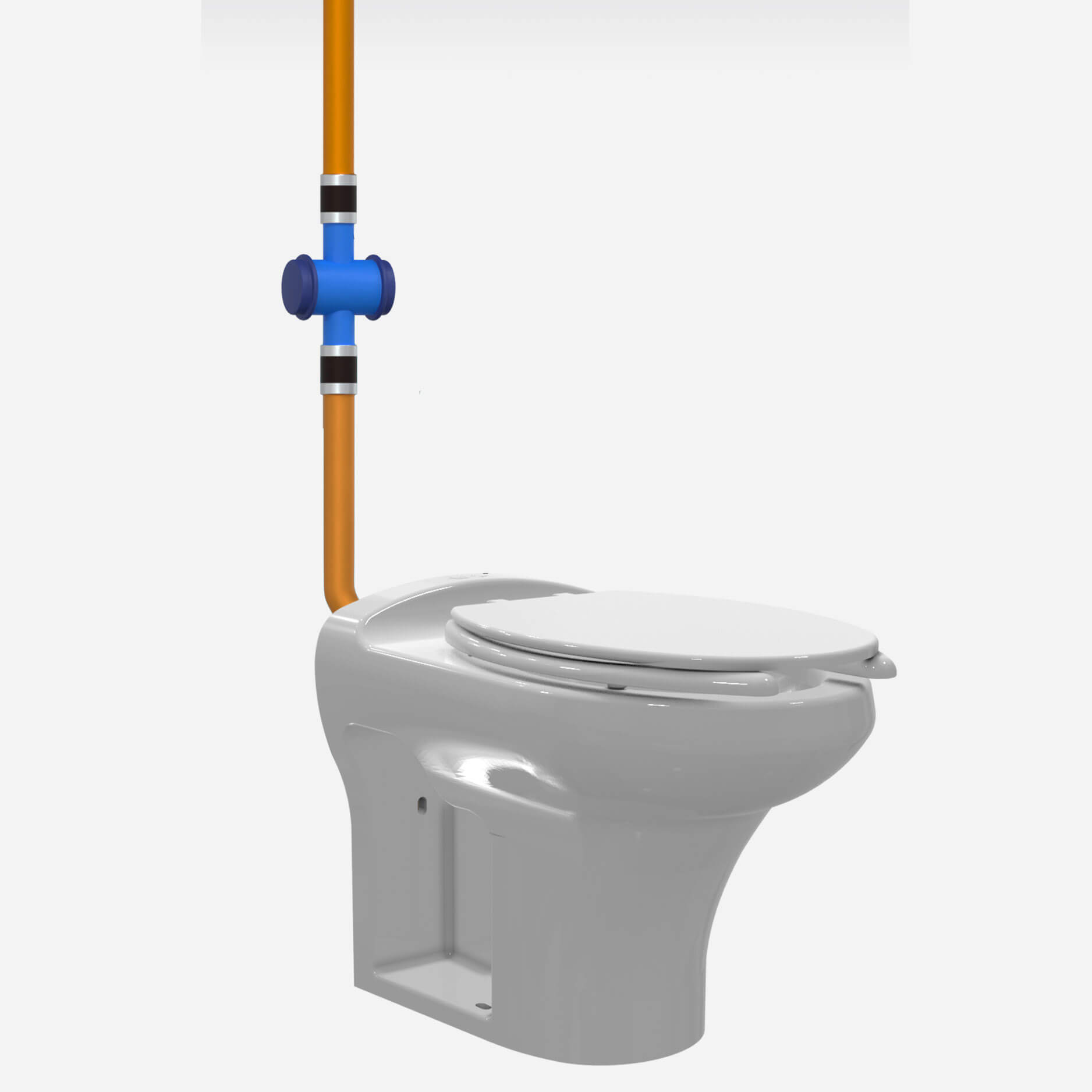

A constant vacuum pressure in the waste piping system draws air into the toilet when flushed; this eliminates any splash or flush plume from the bowl as the wastewater is pulled into the piping system.

INFECTION CONTROL - A vacuum flush toilet eliminates the "flush plume" thus reducing the spread of germs. NSF® test confirmed no detectable overspray.

ADAPTIVE DESIGN - Eliminating the need for under slab or under floor piping means greater flexibility in plumbing layout and adaptive reuse of space.

TOILET FEATURES

• Elongated bowls
• Easy to install

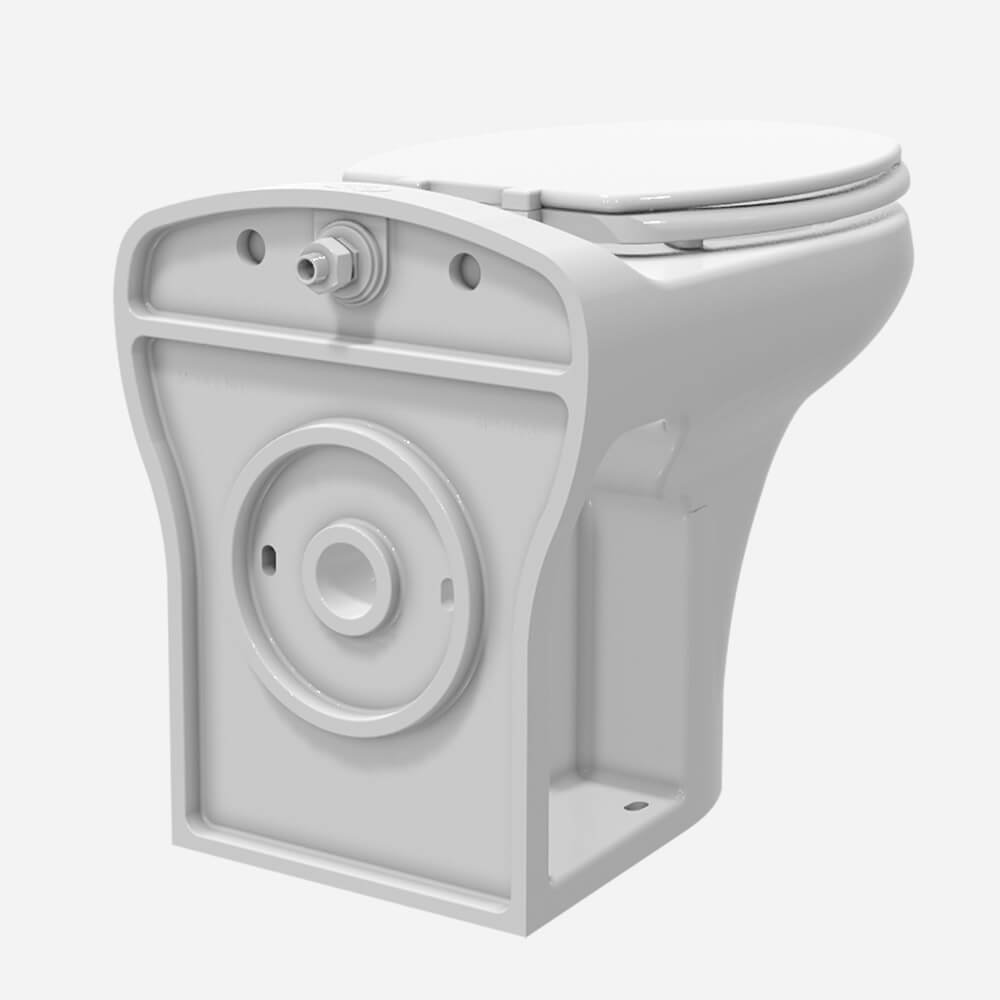

• Wall waste configured for vacuum plumbing
• Floor mounting
• When installed according to local code, these toilets are ADA compliant.
